FutureX Eclipse™ represents the next generation of electronically controlled switchable dynamic glass technology, delivering unmatched performance in light transmission control and solar heat gain management. With ultra-fast ≤1 second switching speed and stepless dimming capability, Eclipse™ sets new standards for intelligent building facades and dynamic environmental control.

How it Works

FutureX Eclipse™ utilizes advanced Eclipse® electropolarized switching layer technology integrated within premium insulating glass units. Our revolutionary system operates through controlled electrical fields that instantly align specialized molecules, providing immediate changes in glass opacity and thermal properties.

Eclipse Mode (Tinted State):

• Visible Light Transmission: ~1%
• Solar Heat Gain Coefficient: ~0.09 to 0.15
• Maximum solar heat rejection and glare control
• Optimal for high-sun conditions and cooling demand reduction

Sun Mode (Clear State):

• Visible Light Transmission: ~46% to 60%
• Solar Heat Gain Coefficient: ~0.30 to 0.46
• Maximum daylight penetration with thermal efficiency
• Ideal for overcast conditions and winter heating assistance

Proven Energy Performance

Measurable Building Benefits:

• 20-25% reduction in overall energy consumption
• Up to 35% decrease in peak cooling loads
• 91% solar heat blocking capability in tinted state
• Eliminates 100% of mechanical shading requirements
• Reduces HVAC equipment sizing by up to 25%

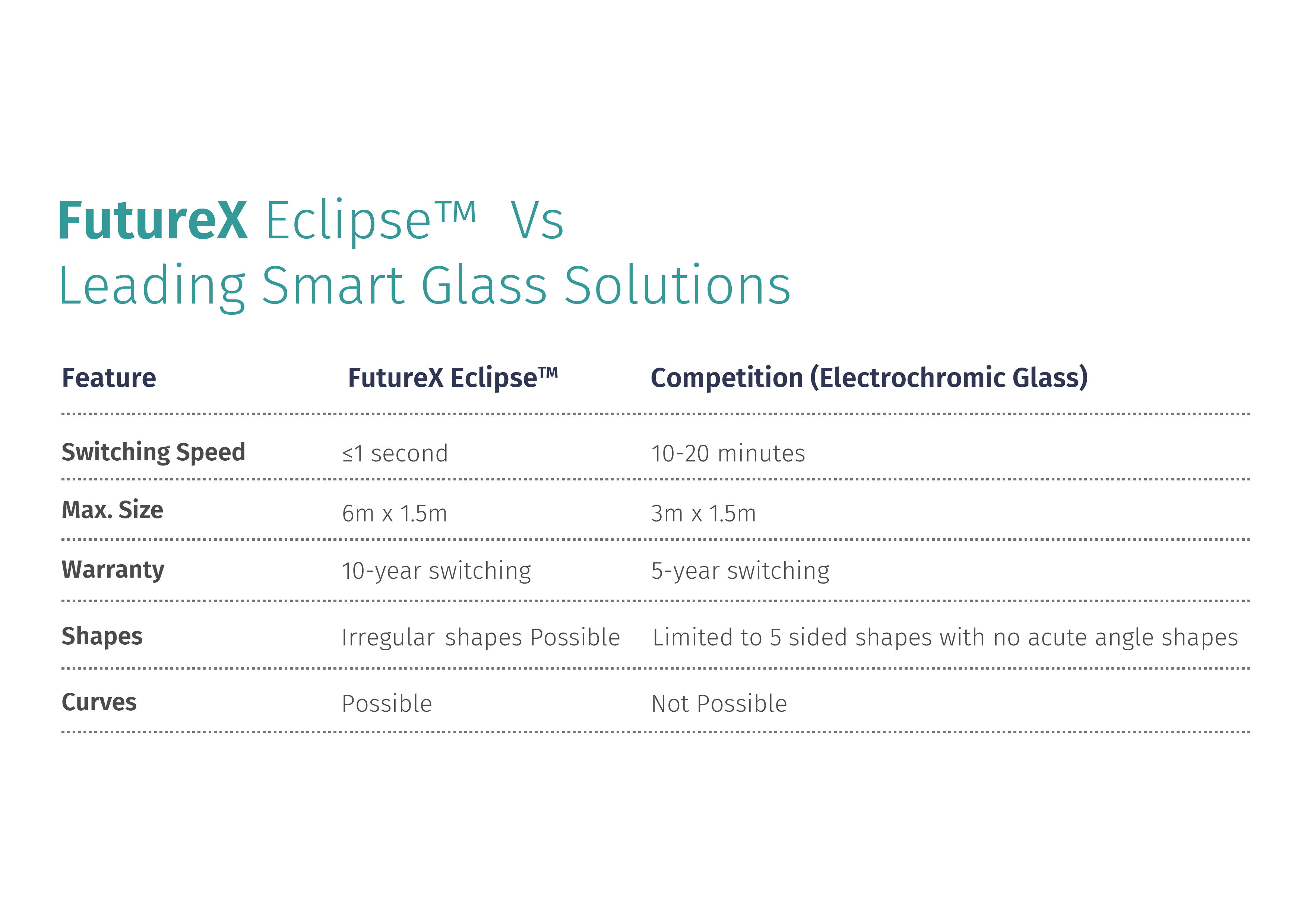

Technical Specifications

Performance Characteristics:

• Switching Speed: ≤1 second (industry-leading response time)
• Control Range: ~1% to ~60% visible light transmission
• Operating Voltage: 5 volts DC or less (ultra-low energy consumption)
• Maximum Size: 6m x 1.5m
• U-value: 1.2 W/m²K (EN 673)
• Impact Resistance: Class 1(B)1 (EN 12600)
• Service Life: Comparable to traditional glazing systems

Glass Configuration Options:

Standard Skylight Configuration (44.04mm total thickness):

• Outboard: 6mm Low E Heat Strengthened + 1.52mm interlayer + 6mm Advanced Solar Control Double Silver High Performance
• Cavity: 16mm Warm Edge Spacer with 90% Argon fill
• Inboard: 6mm Low Iron + Eclipse® Switching Layer + 6mm Low Iron (laminated structure)

Standard Curtainwall Configuration (36.52mm total thickness):

• Outboard: 6mm Advanced Solar Control Double Silver High Performance
• Cavity: 16mm Warm Edge Spacer with 90% Argon fill
• Inboard: 6mm Low Iron + Eclipse® Switching Layer + 6mm Low Iron (laminated structure)

Advanced Control Systems

Intelligent Automation:

• Real-time environmental sensors and predictive automation
• BACnet and major BMS platform compatibility
• Integration with building management systems (EN 15232)

Flexible Control Options:

• Manual override controls via intuitive wall panels
• Mobile device applications for remote management
• Zone-based control for different building areas
• Individual glass unit control capability
